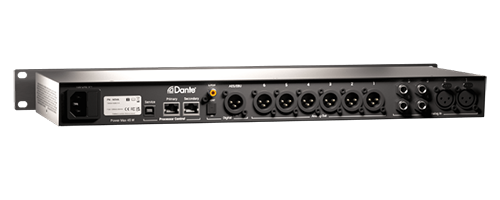

| リアパネル |
|
| デジタル・オーディオ接続 |
| ADAT/SPDIF入力:: |
1x ADAT or SPDIF (Optical input) |
| SPDIF入力: |
1x SPDIF (Coaxial input) |
| イーサネット・ポート: |
2x Ethernet port （Dante 16in/16out） |
| XLR出力: |
1x AES3 Stereo Output |
| |
| アナログ・オーディオ接続 |
| バランス入力: |
4x 6.35mm Jack
2x XLR |
| バランス出力: |
6x XLR |
| |
| Audio & Processing |
| ADC Resolution / Sampling Rate: |
24 Bits/192 kHz ※現在96kHzまで，今後Ver.アップにて対応予定 |
| DAC Resolution / Sampling Rate: |
24 Bits/192 kHz ※現在96kHzまで，今後Ver.アップにて対応予定 |
| A/D Dynamic Range (AES17): |
115 dB (A-Weighted, ref. +18dBu) |
| D/A Dynamic Range (AES17): |
115 dB (A-Weighted, ref. +18dBu) |
| D/A THD+N ratio: |
> 110dB, 1kHz@0dBFS (20kHz BW) |
| Processing Sampling Rate: |
Native up to 192kHz (no SRC)
※現在96kHzまで，今後Ver.アップにて対応予定 |
| Processing Resolution: |
64 bits floating point |
| Processing Sampling Rate: |
2 Optimizer licenses included (upgradable) |
| |
| Power supply |
| Power requirement: |
100V-240V AC 50Hz/60Hz |
| Power consumption: |
15W |
| Mains fuse: |
T315mA slow blow |
| Transformer: |
Integrated (no external transformer, standard IEC socket) |
| Operation mode: |
Fanless design for silent operation |
| |
| Network |
| Network connectivity: |
IPV4 dual connector (configurable) |
| IP Configuration modes: |
DHCP / Auto-IP link local / fixed IP |
| Compatibility: |

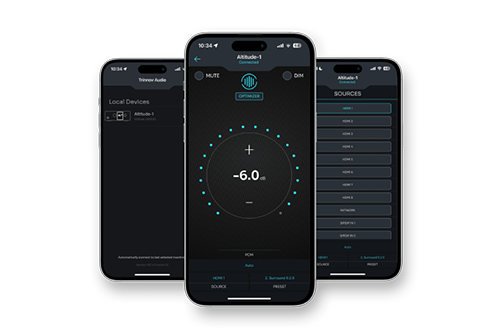

Eucon compatibility via the “Trinnov App” |
| |
| Weight & dimensions |
| Dimensions: |
W482 x D192 x H44 mm |
| Shipping box dimensions: |
W590 x D310 x H90 mm |
| Weight: |
2.5 kg |
| Shipping weight: |
4 kg |
| Rack Mounting: |
1U - Fixed Rack Ears |
